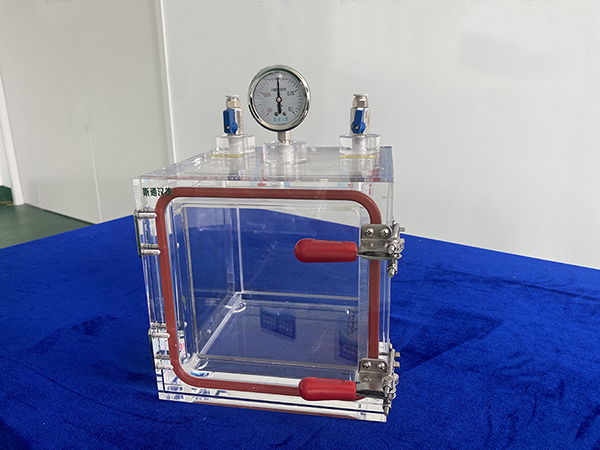

Acrylic Vacuum Box

An acrylic vacuum box is a crystal-clear airtight structure made of acrylic materials. The controlled vacuum can be up to 99.9% vacuum (760mm/29.9" Hg).  It is fabricated with glued acrylic sheets, when necessary, enhanced with SS screws.

Its primary functions include removing O₂, H₂O, and other organic gases, and it is widely used in ultra-pure environments requiring anhydrous, oxygen-free, and dust-free conditions. Biological applications include anaerobic bacterial culture and hypoxia cell culture‌.

APPLICATIONS

1. Vacuum degassing

2. ‌Vacuum drying

3. ‌Atmospheric simulation

4. Vacuum impregnation

5. ‌Vacuum encapsulation

6. Vacuum storage

7. ‌Product testing

Features

1. Available in cylindrical and cubic shapes, customized sizes

2. Top or front loading

3. ‌Vacuum up to 760mm/29.9" Hg

4. ‌Transparent acrylic thickness from 20 to 50mm

5. The samples, processes, and reactions inside the room can be monitored effectively, no necessary to open the door

6. All parts are visible through the high transparentacrylic material

7. ‌Stainless steel latches and inlaid square/O-ring provide cleanand leak-tight operation

8. Warning: Only use water and mild detergent tto clean the acrylic material. The other material could damage the acrylic. Avoid sharp tools during maintenance and use soft cloth instead.

CUSTOM OPTIONS

1. Custom sizes

2. Additional ports

3. Hinged or clamped

4. Shelf

ACCESSORIES

1. Vacuum controllers

2. Vacuum pumps

3. Vacuum gauges

4. Valves

5. Shelf

6. Internal mixers

7. Custom options & accessories can be quoted upon request.
