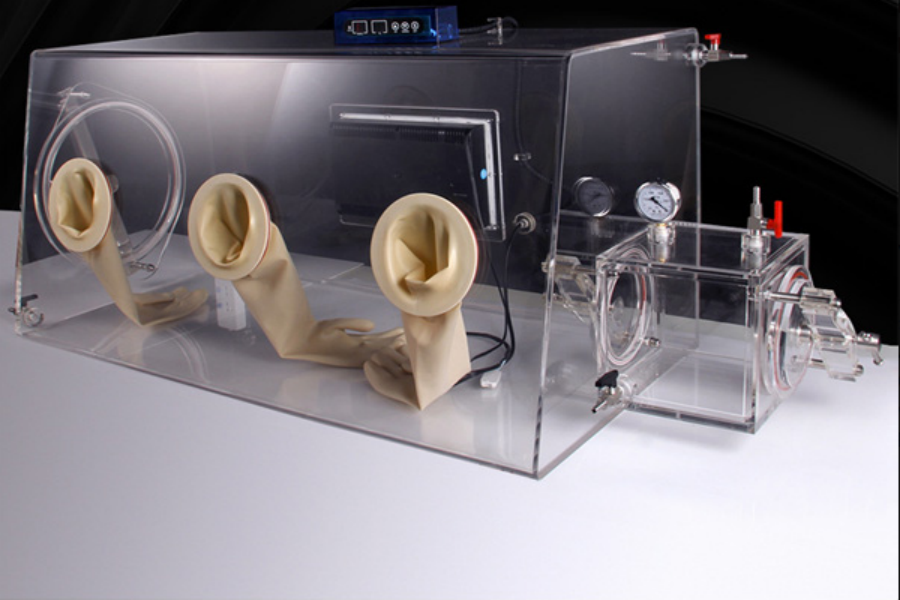

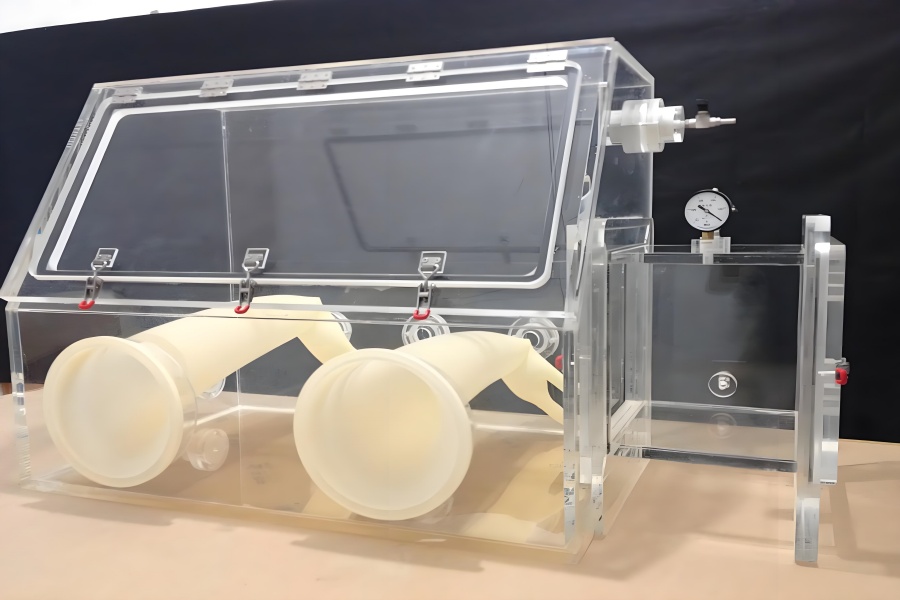

Isolation Acrylic Glove Box (with Airlock Transfer Chamber)
Categorize:Acrylic Glove Box
Model:IA074757T
Size:700*470*570
Isolation Acrylic Glove Box (with Airlock Transfer Chamber)
Features:
All parts are visible through the high transparent acrylic material
The samples, processes, and reactions inside the main chamber can be monitored effectively, no necessary to open the door to check
With airlock transfer chamber, facilitate the moving out samples inside the main chamber or moving in samples from outside with the help of airlock transfer chamber, during the process inside the main chamber)
No vacuum available in the main chamber, the airlock transfer chamber can be vacuumed.
Stainless steel latches and inlaid square/O-ring provide clean and leak-tight operation
Warning: Only use water and mild detergent tto clean the acrylic material. The other material could damage the acrylic. Avoid sharp tools during maintenance and use soft cloth instead.
Specification | ||||
Model | IA074757A | IA096070A | IA107575A | |
chamber(mm) | Main | 700*470*570 | 900*600*700 | 1000*750*700 |
Airlock trasfer | 240*240*240 | 240*240*240 | 240*240*240 | |
Door(mm) | Main | 300*380 | 400*400 | 400*400 |
Airlock trasfer | 240*240 | 240*240 | 240*240 | |
Material | Acrylic | |||
Thickness(mm) | Main | 6 | 10 | 10 |
Airlock trasfer | 10 | 10 | 10 | |
Valves | Inlet | 10 | 10 | 10 |
Outlet | 12 | 12 | 12 | |
Airlock transfer chamber | Vacuum | Vacuum to be kept 12 hours at -0.1mpa (different with altitude) | ||
Inlet(mm) | 10 | 10 | 10 | |
Outlet(mm) | 10 | 10 | 10 | |
Seal | Silicone | Silicone | Silicone | |
Glove | Nitrile gloves | Nitrile gloves | Nitrile gloves | |
Inner power socket | YES | |||
G.W./N.W. | NW:23.8kg/GW:40kg | NW:47kg/GW:72kg | NW:55kg/GW:95kg | |
Sizes(mm,LWH) | Whole unit(mm) | 940*470*570 | 1140*600*700 | 1240*750*700 |
Wooden case (mm) | 1230*550*720 | 1420*700*870 | 1520*850*870 | |
Warranty | One year | |||
Product details:
One main chamber
One airlock transfer chamber
One door in main chamber and share with the transfer chamber another door.
Two glove ports with Nitrile gloves
One inlet/external valve and one outlet/external valve
One power socket
